IWV FP
Flat panel DR that fits most existing tables. Lower cost to go digital.

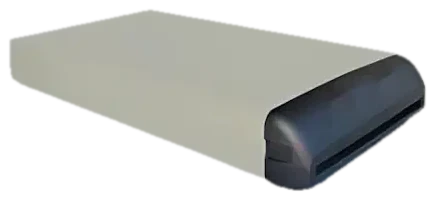

IWV CR eco: compact computed radiography that works with your current table
Say goodbye to film, chemicals and retakes without replacing your x-ray table. The IWV CR eco is a compact computed radiography system backed by in-house IWV hardware and software engineers.
Quotes come from an IWV equipment consultant, with trade-in options where they apply.
- To a processed image
- 30 s
- 65,536 levels of grey
- 16-bit
- Compact footprint (H x W x L)
- 6 x 18 x 32 in
- Cassette sizes up to 14 x 17
- 3
Overview
IWV calls it Total System Accountability: when you need help, you get it from the engineers who built the system. No excuses and no finger-pointing.
Flat-scan technology reads plates without bending them, which protects your plates and keeps image quality consistent. Acquisition, diagnosis, PACS and report-writing software come with the system, along with a Dell acquisition computer and a 23 inch high-resolution monitor.
Best for
- Practices leaving film
- Clinics that want to keep their current table
- Satellite locations and lower-volume rooms
Specifications
From IWV’s published product information. Ask your consultant for the current specification sheet before you order.
Reader
| Image depth | 16 bits per pixel, 65,536 levels of greyscale |
|---|---|
| Speed | Processed images in 30 seconds |
| Transport | Flat-scan, does not bend imaging plates |
| Cassettes | Embedded phosphor plate cassettes, 8 x 10, 10 x 12 and 14 x 17 in |
| Size | 6 in H x 18 in W x 32 in L |
| Table | Works with your current x-ray table |
Workstation and software
| Computer | Dell acquisition computer |
|---|---|
| Monitor | 23 in high-resolution flat panel |
| Software | Acquisition and diagnosis |
| PACS | DICOM send and receive, store and auto-route, print |
| Reports | Report writer module for written study reports |
| Formats | DICOM 3.0, TIFF, BMP, JPEG |
| Tools | Multi-frequency image processing, zoom, cropping, annotations |
| Integration | Communicates with any practice management software |
Options
| Mounting | Vertical wall-mount bracket |
|---|---|
| Cassettes | Additional 8 x 10, 10 x 12, 14 x 17 in |
| Workstations | Additional dedicated workstations |
| Warranty | Extended warranty available |
Questions about the IWV CR eco
Does the CR eco work with my current x-ray table?
Yes. The IWV CR eco is designed to work with your current x-ray table.
How fast does the CR eco process an image?
About 30 seconds from plate to processed image.
What cassette sizes does it take?
8 x 10, 10 x 12 and 14 x 17 inch embedded phosphor plate cassettes.
CR or DR?
CR works with your current x-ray table. DR, like System X, puts the image on screen in 2 to 5 seconds with no cassette to carry or scan. Read our CR vs DR guide, or ask a consultant which fits your caseload.
Works well with the IWV CR eco
IWV System X
17x17 cesium DR, 32 kW generator, 4-way float table. Images in seconds on 110 V.

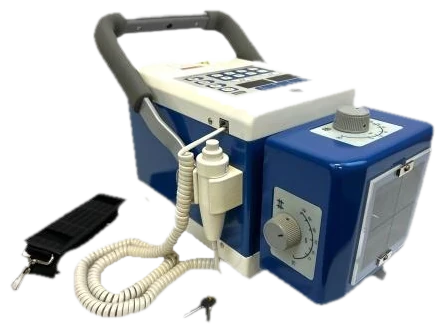

Ultra Light Portable
25 lb, battery powered, 100 kV / 40 mA. Built for large animal and mobile practice.
Get a quote on the IWV CR eco
Tell us how your practice works. A consultant will match you with the right system, explain trade-in options and send a quote.
(303) 996-8489- One company sells, installs, trains and supports it
- Trade-in and trade-up incentives on film, CR and older sensors
- Headquartered in Englewood, Colorado
